Zeiss Ikon Super Ikonta 531/2 – Timeless Elegance

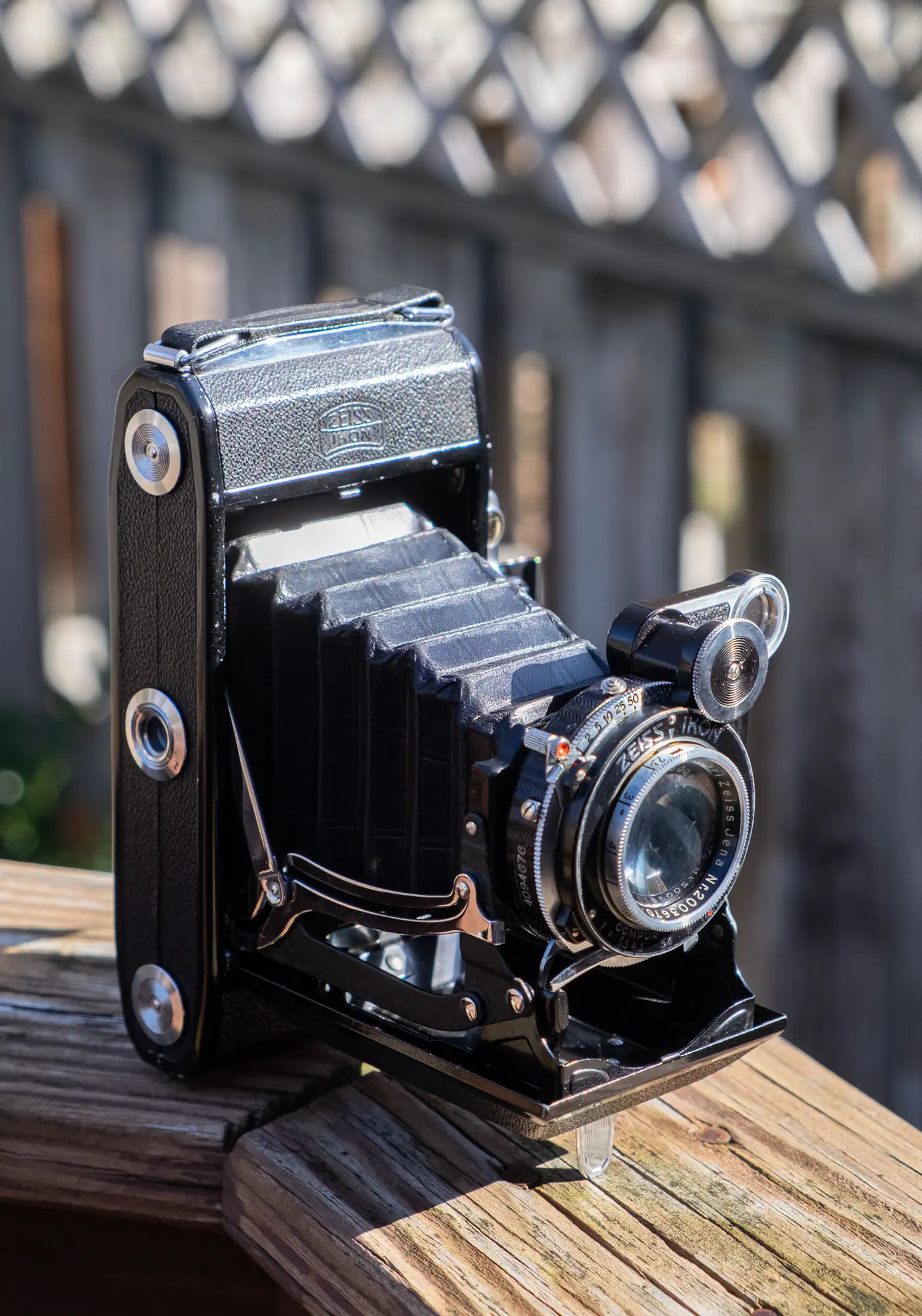

My Super Ikonta 531/2

It is no secret that I love vintage photographic gear, with a sweet spot for rangefinder cameras. My first rangefinder camera was the Zeiss Ikon Super Ikonta 531/2 C, a medium-format folding camera originally belonging to my great aunt. The camera uses 120 roll film and produces 6x9cm negatives, the largest format available in a portable folding camera using 120 roll film.

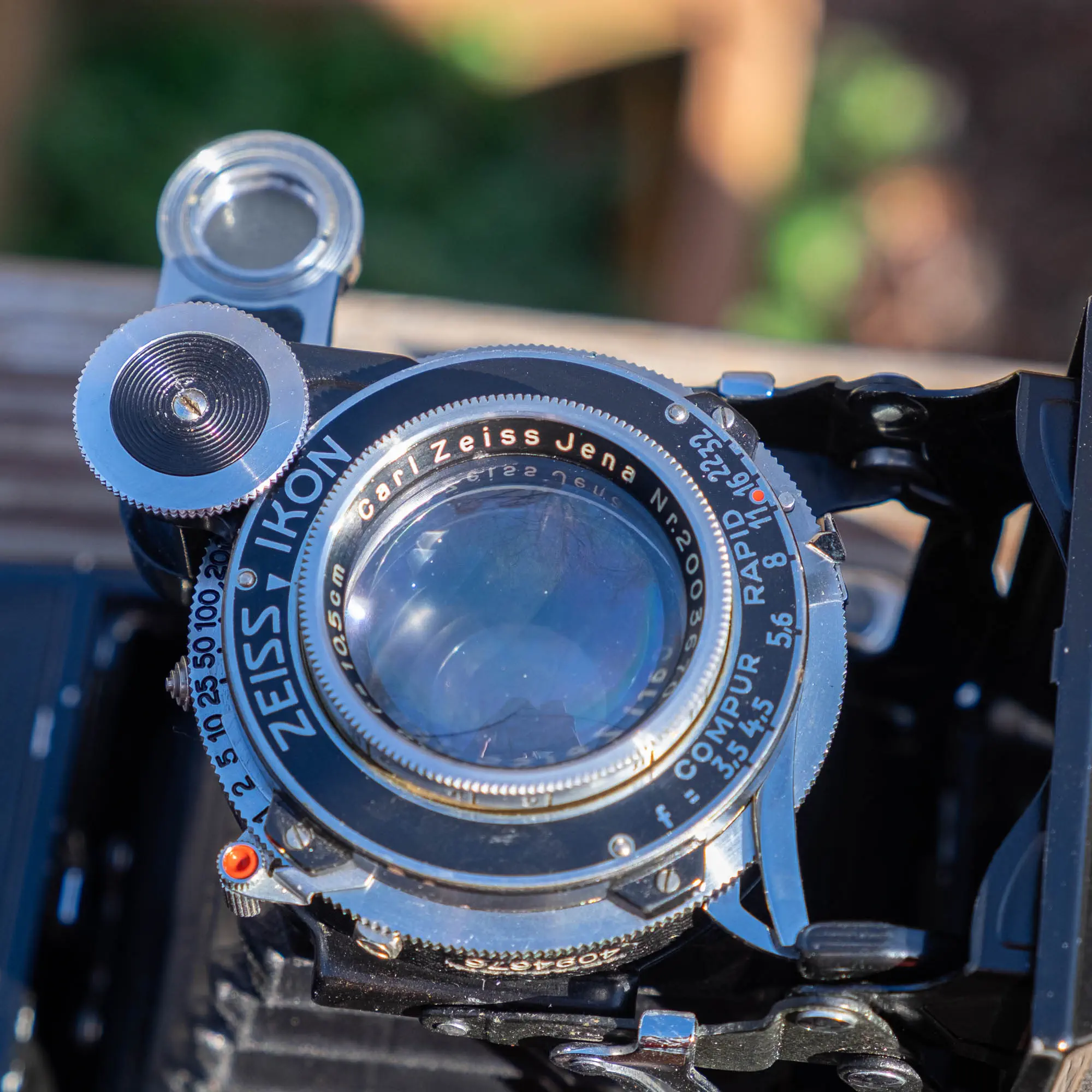

My camera is equipped with the excellent 10,5cm f/3.5 Tessar, the Compur Rapid shutter, which offers speeds from one second to 1/400 second, bulb mode, an optical Van Albada viewfinder, and a coupled rangefinder. Heaven. The camera has no built-in light meter, but that’s not a problem. On bright days, I can use the Sunny 16 rule; otherwise, I use my Gossen Luna Pro light meter, which, by the way, is fantastic.

Despite its age, the camera is in very good shape. The Van Albada viewfinder is not cloudy; the frame lines are still visible. The bellows are in perfect shape, with no light leaks. The button that opens the lens and viewfinder also works well. The leatherette looks excellent as well. The only visible signs of age are a few areas where the black paint is chipped. If I had to rate it, I’d say it is Excellent+.

Super Ikontas are beautiful, well-built, handsome cameras. When folded flat, they are very portable and can fit in a pocket, depending on the pocket size. However, they can easily slip into a bag or backpack. I enjoy using this camera so very much. I’m casually looking for a Super Ikonta B, which is a square-format camera.

The age of my folder

Based on the serial numbers, my camera is likely from 1937. The lens was produced in 1937, and the Compur Rapid Shutter, also based on its serial number, was made in 1935. The Zeiss Ikon logo imprinted on the leatherette and other locations is the older version with an edgier S in the Zeiss name. This was supposedly changed in 1936 to a more rounded S (I cannot find the reference). My camera has no serial number imprinted on the back near the door hinge or anywhere else.

Zeiss Ikon: The Company*

Zeiss Ikon was established in 1926 in Dresden, Germany, by merging four major camera manufacturers: Contessa-Nettel, Ernemann, ICA (International Camera Aktiengesellschaft), and Goerz. It was backed by the Carl Zeiss Foundation, famous for its high-quality optical lenses.

Zeiss Ikon became a leader in camera innovation, offering a wide range of products from simple box cameras to sophisticated rangefinders and folding cameras. The company was known for pairing its cameras with Carl Zeiss lenses, which were (and still are) considered some of the best in the world.

Zeiss Ikon was pivotal in advancing photographic technology during the early 20th century. Its cameras and lenses set standards for optical and mechanical quality, influencing competitors worldwide. Some famous lens designs, often copied, are Biotar, Sonnar, Tessar, and Planar. Sonnar lenses being one of my favorites.

Vintage Camera Lines

• Super Ikonta Series: A premium line of medium format cameras with advanced features like coupled rangefinders and excellent optics.
• Contax Rangefinders: High-end 35mm rangefinder cameras designed to compete with Leica. And compete they did.
• Nettar and Ikonta: More affordable folding cameras for amateur photographers. They typically lack the coupled rangefinder.
• Box Tengor: A popular box camera known for its simplicity and reliability.

Post-War Changes

After World War II, Zeiss Ikon faced challenges due to the division of Germany. The company split into two entities:

• East Germany: Continued under the Zeiss Ikon name but operated independently.
• West Germany: Re-established in Stuttgart, producing modern cameras such as the Ikoflex and Contarex.

Though the Zeiss Ikon name ceased to exist as a camera brand in the 1970s, its legacy lives on through Carl Zeiss AG, which continues to produce world-class lenses and optics. Zeiss Ikon remains an iconic name in the history of photography, synonymous with quality, precision, and innovation. Like the Super Ikonta 531/2, its cameras are cherished by collectors and enthusiasts alike.

*The company’s history was compiled with the help of ChatGPT.

How to take a photograph with the Zeiss Ikon Super Ikonta C

Using an old camera like that isn’t as straightforward as using something more modern. Everything has to be done manually, one thing after another. From setting the aperture, the exposure time, focusing the lens, cocking the shutter, and winding the film, to finally pressing the exposure button. The exposure button can only be pressed once you transported the film and cocked the shutter. This prevents accidental double exposures. After ruining a few shots by prematurely exposing the film (trigger finger), I now make sure I cock the shutter and transport the film last. This camera doesn’t have a stop once you reach the next frame; you will have to open the little window on the back and pay attention to the dots and numbers that will appear. Don’t forget that keeping it open can lead to light leaks on bright days. I have to say that I never had an issue with it.

Pre-WW2 lenses typically don’t have any coating that would help with contrast and flares, etc., which is something to keep in mind.

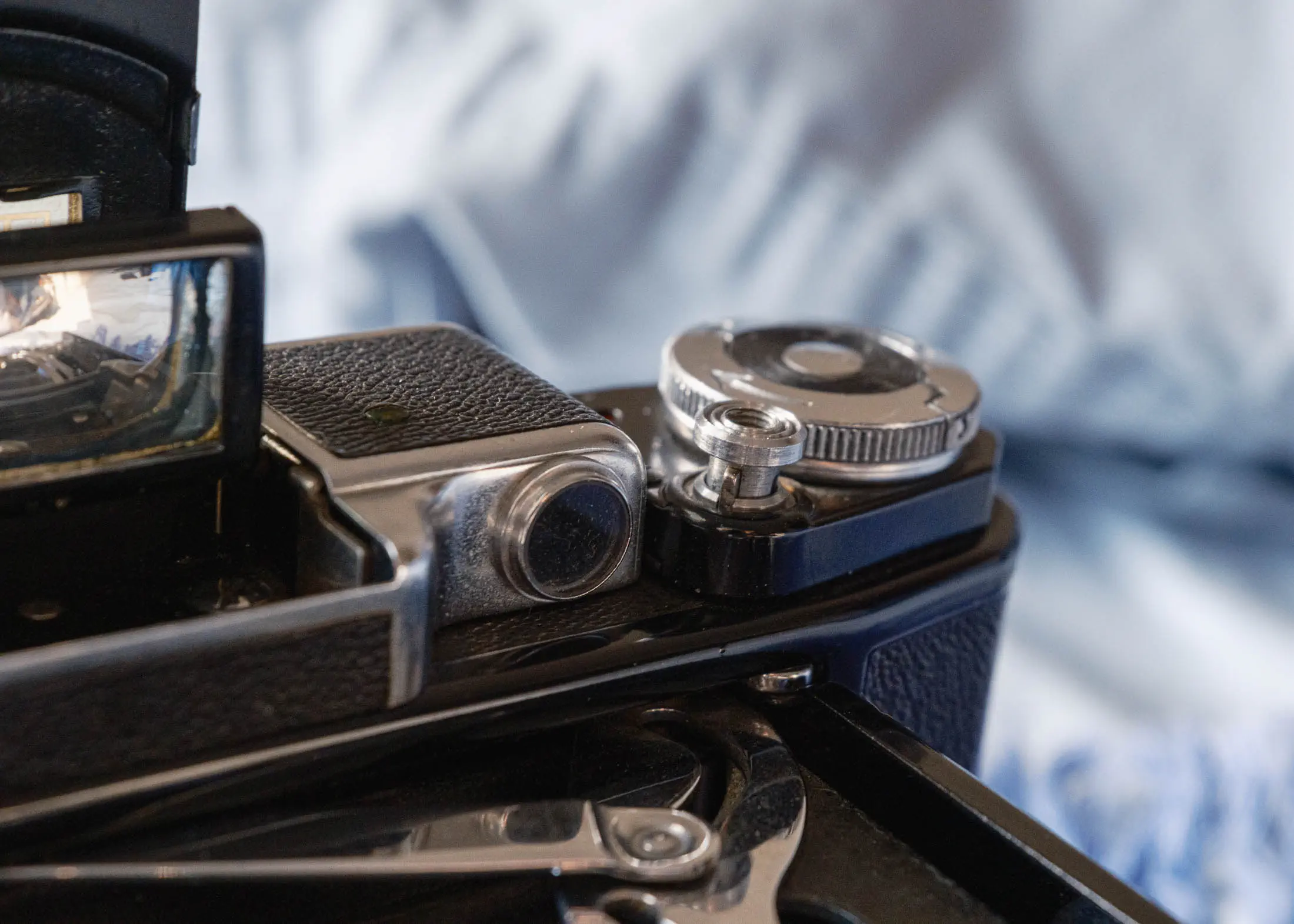

A) Albada Sports Viewfinder with eyepiece  B) Rangefinder windows  C) Focusing wheel of the rangefinder  D) Shutter setting lever  E) Shutter speed setting ring and index  F) Aperture setting lever  G) Film Winding Key

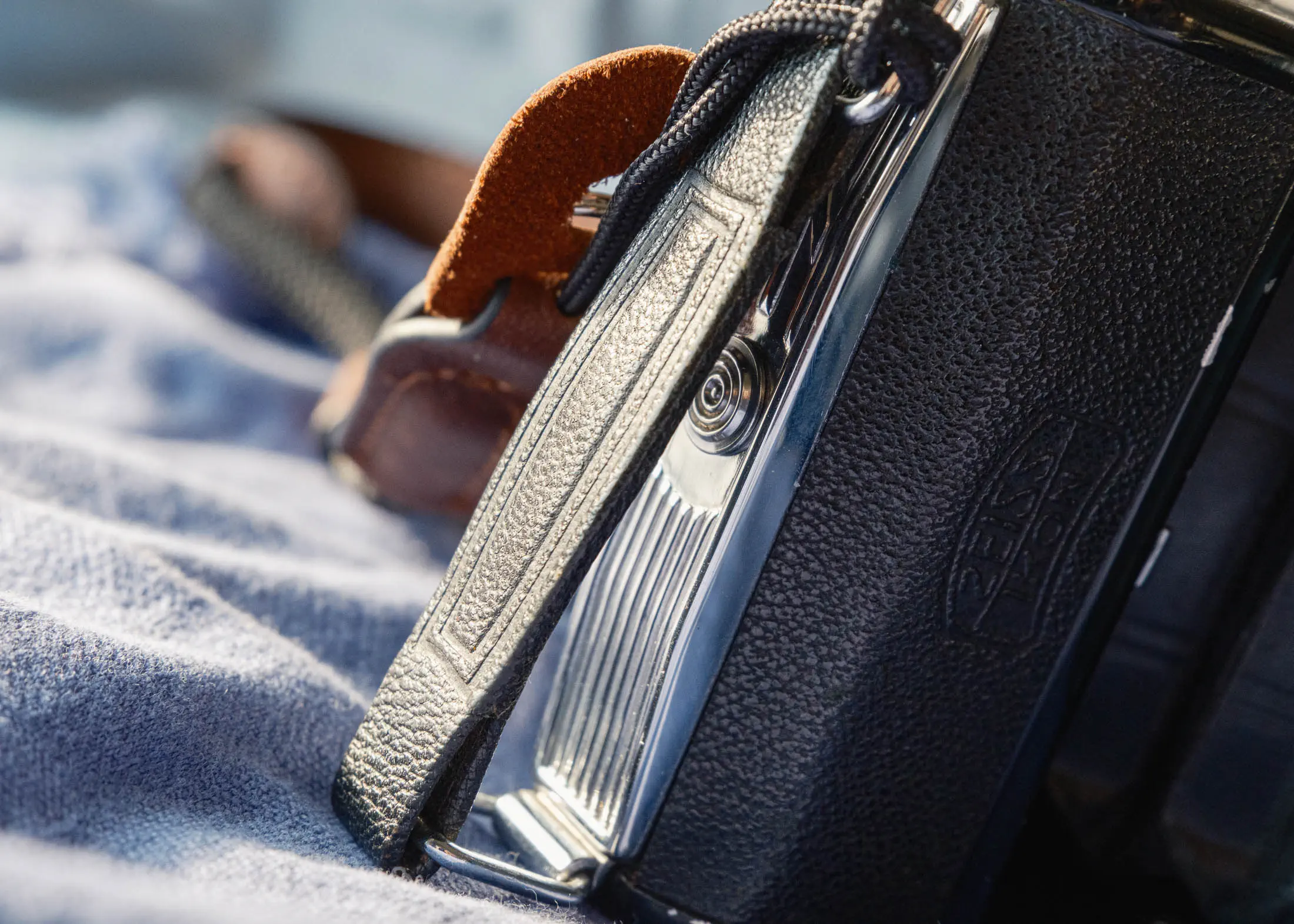

Showing off the camera

Recent Photos Made with my Zeiss Ikon Super Ikonta 531/2

The images below are from a recent visit to Washington DC. I started near the Lincoln Memorial, walked along the Reflecting Pool and then to the Constitution Garden.

Film: CineStill 50D. Developed and scanned by The Darkroom. This film has a distinctive retro look with nice contrast and sharpness. Have a look at my Zeiss Ikon Super Ikonta Flickr Album which will grow in content over time

Final Thoughts

Does using a pre-WW2 camera sound cumbersome? It isn’t once you get a hang of it. It will slow things down. But that’s a good thing. It forces me to think about what I will photograph and how to approach it. With a digital camera, I can be more adventurous or even wasteful, making several pictures of each thing I want to take photographs of, ending up with many photos I will have to look at afterward and sort through. I find this rather painful, looking at many images of similar things. I get eight frames per film with my lovely folder. Shooting mindlessly isn’t an option. Holding 120 film in your hands after it has been developed is incredible. The frames are so large. It doesn’t compare to holding 135 film or a memory card – nothing exciting here, yet very practical.

I love my digital cameras and am not planning to ditch them. I enjoy digital photography. Balance is the answer. That means using vintage lenses on my digital cameras and, of course, vintage film cameras. It doesn’t have to be one or the other.

I do love my Zeiss Ikon Super Ikonta. This camera performs so well and has never disappointed me.

Using my vintage gear compels me to change my approach to photographing the subjects that inspire me. This intentional shift requires me to slow down, allowing for a more thoughtful engagement with my equipment, even when I incorporate modern autofocus lenses and digital camera bodies.

A Few Resources

These are a couple of links that you might find useful.

• Compur Serial Numbers
• Carl Zeiss Serial Numbers
• Zeiss Ikon Serial Numbers
• How to use a Compur Shutter
